Product Series: Horizontal Machining Center

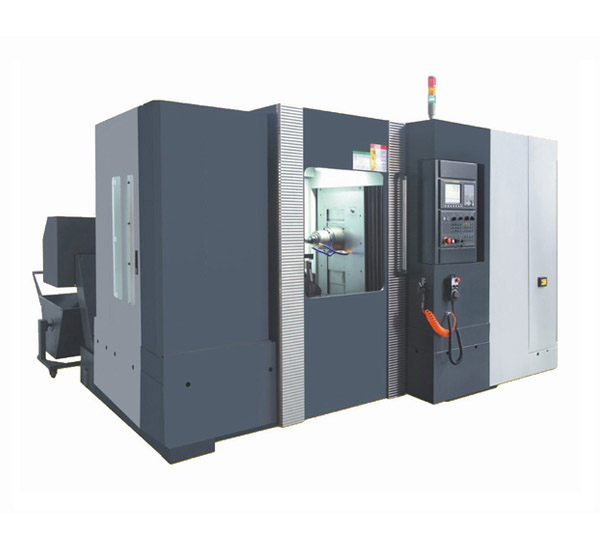

	Machine Model		Unit	HC350A	HC350B
Stroke	X-axis travel		mm	500	650
	Y-axis travel		mm	300	350
	Z-axis travel		mm	400	400
	Distance spindle center to table		mm	50-350	100-450
	Distance spindle nose to table center		mm	-50-350	-50-350
Workbench	Table size		mm	760×500	1300×600
Workbench	Table number			1	1
Spindle	Spindle speed		r/min	50-8000	50-6000
	Spindle taper			ISO7:24 BT40	ISO7:24 BT50
	Main motor power		kw	5.5/7.5	15/18.5
Fast-moving	Rapid traverse rate		m/min	20	20
Fast-moving	Feed rate		m/min	10	10
Automatic tool changer	Tool storage capacity			16	/
	Tool selection mode				/
	Shank Type			BT40	/
	Tool change time (tool to tool)		s	2.5	/
	Maximum tool length		mm	300	/
	Maximum tool diameter	(Adjacent)	mm	75	/
	Maximum tool diameter	(interval)	mm	150	/
	Maximum tool weight		kg	8	/
Precision machine tools	Positioning accuracy			0.010(Semi-closed loop)	0.010(Semi-closed loop)
Precision machine tools	Repeatability			0.006(Semi-closed loop)	0.006(Semi-closed loop)
Machine overall	Machine weight		T	4.6	4.6
Machine overall	Dimensions		mm	3500×2500×2400	3500×2200×2400
Control System				FANUC Oi -mate-MD	GSK218MC-H

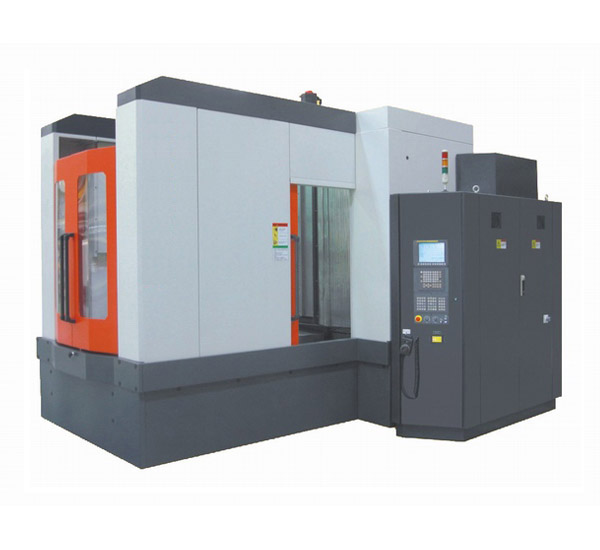

Machine Model	Unit	HMC500A
Stroke
X-axis travel	mm	750
Y-axis travel	mm	700
Z-axis travel	mm	650
Distance spindle center to table	mm	50-750
Distance spindle nose to table center	mm	150-800
Workbench
Table size	mm	500x500
Table number		1
Positioning rotary table indexing the minimum division unit		1º
Table T-slot (number - size × spacing)	mm	5-14×100
Table load	kg	500
Spindle
Spindle speed	r/min	8000
Spindle taper		ISO7:24/φ150(interval)
Spindle motor power	KW	11/15
Triaxial
Triaxial form guide		Three-line rail
Three-track ball screw specifications		X:5012 Y:5012 Z:5012
Three-axis guide specifications		X:45 Y:45 Z:45
Three-axis servo motor torque	N.m	X:22 Y:40 Z:22
Three-axis motor connection mode
Fast-moving
Rapid traverse rate	m/min	32
Feed rate	m/min	10
Automatic tool changer
Tool storage capacity		40
Tool selection mode
Shank Type		BT40
Maximum tool weight	kg	8
Precision machine tools
positioning accuracy	mm	0.010
Repeatability	mm	0.006
Machine overall
Machine weight	T	14
Dimensions	mm	5000×3800×3100
Bed structure		Positive "T" type structure
Control System	FANUC Oi-MD

This information is for reference only, the specific parameters and functions to the product specification shall prevail. The company the right to alter product design and specifications of the reservation, when without notice.
